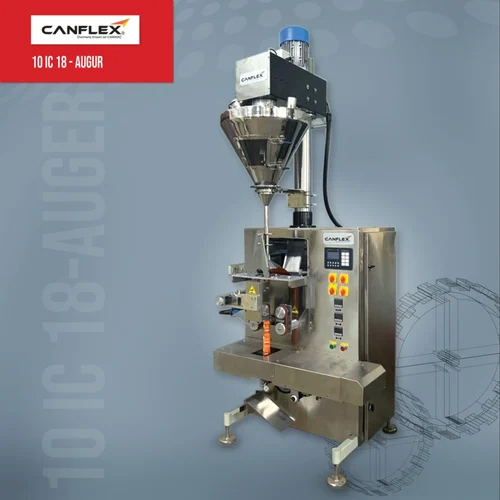

Automatic Powder Packing Machine

Automatic Powder Packing Machine
Automatic Powder Packing Machine
Product Code : 06
Brand Name : CANNON
Product Description

We are the foremost manufacturer, exporter and supplier of a broad range of Automatic Powder Packing Machine. Offered packing machine is used in various industries for packing of powder products like coffee powder, instant milk powder, flour, maida, suji, glucose powder, starch, spices, fine sugar, etc. Under the supervision of our technical experts, this packing machine is efficiently manufactured using the best quality components with the aid of modern technology in sync with predefined industry norms. Also, we provide this Automatic Powder Packing Machine in various specifications at a very economical price.

Features:

  • This high speed packing machine can produces 40-45 pouches per minute, in a length and width of 140X240 mm

  • High speed torque motors for rewind and rewind traction

  • Quick and easy loading and unloading of the material

  • High speed packaging with better accuracy

  • Speed, batch size count easily settable with display

  • The packing system of this machine is pneumatic, motorized winding and unwinding system, PLC controlled operations


Application:

This machine is ideal to pack the powder products like, coffee powder, instant milk powder, flour, maida, suji, glucose powder, starch, spices, fine sugar, insecticides powder, fine tea, industrial chemical powders and many other essential commodities, etc.

Optional Attachments:

The machine offered by us is attached with servo auger filler, nitrogen gas flushing system, perforation / strip cutting system, batch printing device, inclined screw feeder with base hopper, poking device, etc. It is continuous type band sealer with nitrogen flushing, Power 230 volt, Standard model, Load 300 W and Heater temperature controller 0 to 300 degree Celsius

Technical Specifications

Feeding head

Auger Screw feeding system

Production speed

40-45 pouches / minute

Machine control system

P.L.C (Screen touch programmed logic controller)

Packing range

50 to 250 gm's

Film Width

280 mm

Film Thickness

50 to 80 microns

Film Material

Laminated

Sealer heating system

Continues

Inner Core Dia. of Film Roll

70 mm

Outer Dia of the film roll

up to 350 mm

Pouch Style

over lap center sealed pillow type

Pouch width

up to 140 mm

Pouch Length

up to 240 mm

Power Consumption

5 kW/Hour

Peak Power

5 kW.

Power requirement

3 Phase, 415 V, 50 Hz plus Neutral

Film Guard mechanism

Auto stop when film is exhausted

Pouch Counter

Provided

Date printing device

Optional

Photo Cell

Provided

Machine Dimensions In mm

2715(H) x 1000(W) x 1910(Depth).

Net Weight

600 kg's (approx).
