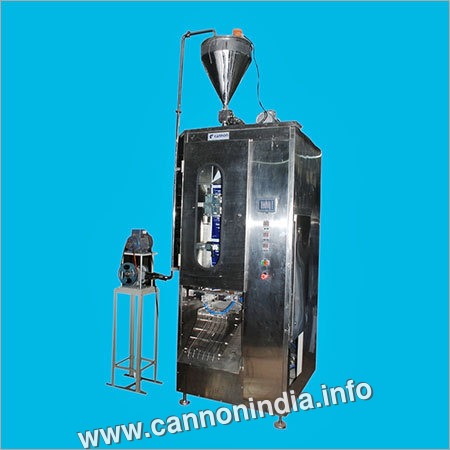

Fevicol Packing Machine

Fevicol Packing Machine
Fevicol Packing Machine
Product Code : 06
Brand Name : CANNON
Product Description

Established in the year 1992, we are an eminent manufacturer, exporter and supplier of best quality Fevicol Packing Machine. The machine provided by us is manufactured with the topmost grade components and modern technology in accordance with set industry norms. This machine is mainly used for packing the fevicol in different quantities as per clients need. We rely on our quality controllers to ensure the best performance of this machine. Known for its excellent functionality, this Fevicol Packing Machine is accessible in various technical specifications at market leading prices.

Features:

  • Designed with advanced technology for performing at high speed

  • Noise less operation which ensures optimum efficiency

  • Robust design with excellent functionality

  • This machine packs the fevicol in various quantities and seals it tightly so that they do not come in contact with air or other such dust particles

  • Equipped with easy-release handle for various width adjustments depending on packing size

  • This machine offers different filling capacities ranging from 250 to 1000 Gms.

  • Helps in minimizing manpower and also increase the production


Model NO: CANNON 1000 LPP

Other Info:

The offered machine is used for packing of highly viscous liquid such as fevicol in any heat sealable poly pouches or laminate pouches. This machine is cladded with stainless steel housing and also supports angular structure for contact parts that are made of stainless steel. Also, this machine is attachment with date coding device and photocell.


Technical Specifications:

 Feeding head  Variable drive mono block centrifugal pump
 Production Speed  25 to 30 pouches/minute (Depend upon Packing Range)
 Machine control system  Electronic Timers
 Packing range  250 to 1000 gms
 Film Width       up to 325 mm (Subject to confirmation).
 Film Thickness  80 to 100 microns.
 Film Material  Co  Extruded LD multi films/Laminate
 Sealer heating system  continues/impulse only
 Inner Core Dia. of Film Roll  70mm
 Outer Dia. of the film Roll  up to 350mm
 Pouch Style  Centre sealed Pillow /four side sealtype
 Pouch Width  150 mm
 Pouch Length  up to 240 mm (Subject to confirmation).
 Power Consumption  3.5 kW / Hour
 Peak Power  5 kW
 Power requirement  Single Phase/three phase, 230/ 415 V, 50 Hzl
 Cooling Water requirement  100 lit/hr
 Pouch Counter  Provided
 Date printing Device  Optional
 Photo Cell  Provided
 Machine Dimensions in mm  2100(H) x 900(W) x 1000(Depth).
 Net Weight  650 kgs (approx).


CANFLEX ENGINEERING PVT. LTD.
P.B. No. 1919, D. No. 7-2-C8/A & C33/A, I.E. Sanathnagar, Hyderabad - 500018, Telangana, India
Mr. K. Srinivas (Managing Director)
