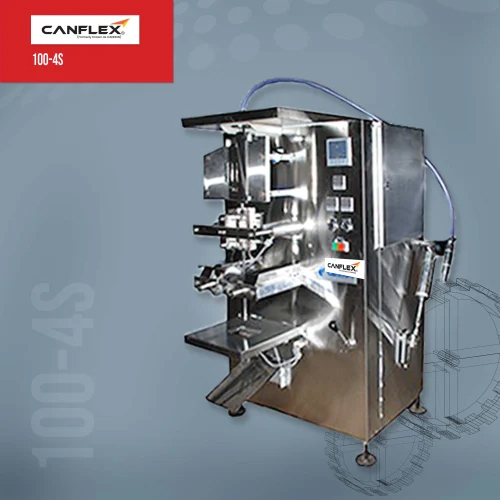

Liquor Packing Machine

Liquor Packing Machine
Liquor Packing Machine
Product Code : 04
Brand Name : CANNON
Product Description

Our enterprise is counted amongst the eminent manufacturers and exporters of a broad array of Liquor Packing Machine. Offered machine is used in various industries for packing of alcoholic beverages, oil, shampoo, bio chemical & pharmaceutical liquids, semi paste, lubricant oil, etc. Manufactured with the aid of latest techniques using superior grade raw material, this conveyor is available in various technical specifications as per the specific demands of the clients. Also, this Liquor Packing Machine can be availed from us at marginal rates.

Features:
  • This is an innovative mechanical machine with model Cannon 100 && 200 4S L series provides high speed single and twin track with individual operation of AFFS system. The offered machine provides low operational cost leading to economy in packaging. Offered machine is designed to produce three side and four side sealing on any heat sealable laminated film.

  • The compact design system with fully automatic provides easy fitting in a small floor space and can be mounted on rugged angular structure and on castor wheel in low resonances. It is low vibration welded design using high grade components, cladded with stainless steel cabinet. All contact parts are made of stainless steel.

  • Solid state heating control system for less maintenance

  • Sealing jaw assembly mounted with LM bearing and rod for efficient operation

  • Photocell control system with automatically adjusted film length, hence saving of negligible film wastage's.

  • Self priming piston filling system gives perfect accuracy with low maintenance and down time, easy to change filling quantity.

  • Ideal to pack any free flow and viscous liquids such as alcoholic beverages, oil, shampoo, bio chemical and pharmaceutical liquids, semi paste, lubricant oil, etc

                                                                                 Technical Specifications

Feeding head

pump operated feeding system

Production speed

45 to 50 pouches per min

Packing range

30-200 ml

Film Width

up to 250 mm

Film Thickness

60 to 80 microns

Film Material

Laminated film.

Sealer heating system

Continues

Inner Core Dia. of Fil, Roll

70 mm

Outer Dia of the film roll

up to 350 mm

Pouch Style

3 or 4 side sealing

Pouch width

up to 125 mm.

Pouch Length

up to 140 mm

Power Consumption

1.0 kW/Hour

Peak Power

3 kW

Power requirement

Single Phase, 220 V, 50 Hz

Pouch Counter

Provided

Machine Dimensions

1500(h) x 450(w) x 450 (Depth)

Net Weight

350 kg's (approximately)
